AttenuatedTotalReflectance.jl

A Julia package for simulating Attenuated Total Reflection (ATR) through the Transfer Matrix Method (TMM) in multilayer thin films. This module provides as a convient, flexible and fast method of preforming attenuated total reflection simulations.

Installation

This package is registered in the official Julia General Registry. You can install it by entering the Pkg REPL mode (type ]) and running:

pkg> add AttenuatedTotalReflectance

Quick Start

using AttenuatedTotalReflectance
using Plots

# 1. Setup Simulation Parameters
λ_nm = 633.0
λ_m = λ_nm * 1e-9

# Define materials:
mats = [
    (material="Glass", n=1.51, k=0.0, thickness=1e-5),
    (material="Silver", n=0.056206, k=4.2776, thickness=47e-9),
    (material="Air", n=1.0, k=0.0, thickness=5e-6),
]

stack = material_stack(mats)
println("System to Simulate: $(stack)")
# 2. Run Angular Sweep (35° to 55°)
angles_deg = collect(35.0:0.001:55.0)
angles_rad = deg2rad.(angles_deg)

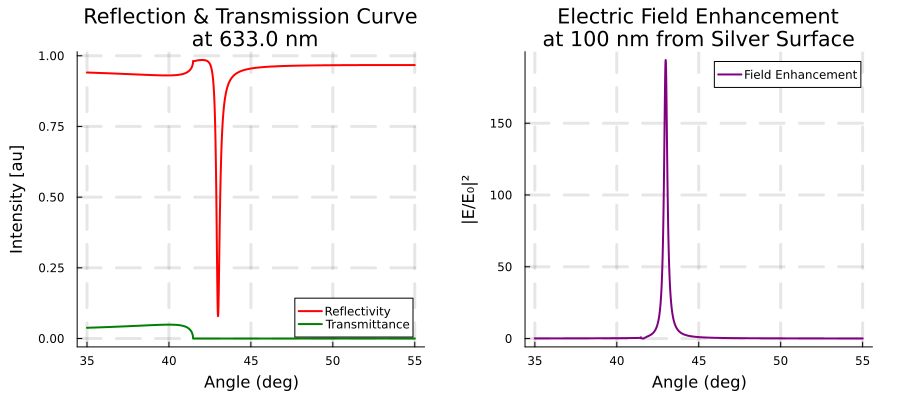

# Calculate Reflection, Transmittance, and Field Enhancement 100 nm from the Silver Surface
R, T, fx, fy, fz, fp = angular_ATR(stack, angles_rad, λ_m, 100e-9, 2)

# 3. Visualize the Results
p1 = plot(angles_deg, [R, T],
    label=["Reflectivity" "Transmittance"],
    ylabel="Intensity [au]", lc=[:red :green],grid=true, legend=:bottomright, lw = 2, title="Reflection & Transmission Curve\n at $λ_nm nm")

p2 = plot(angles_deg, fp,
    label="Field Enhancement",
    ylabel="|E/E₀|²", lc=:purple, lw=2,grid=true, title="Electric Field Enhancement\nat 100 nm from $(stack[2].material) Surface")

plot(p1, p2, layout=(1, 2), size=(900, 400), xlabel="Angle (deg)",gridstyle = :dash, gridlinewidth = 3, margin=5Plots.mm)
